배기팬 공장 젖소 Frp 양계장 환기 시스템

기본 정보
원래 장소: 중국
브랜드 이름: XDA
모델 번호: XDA-F7
최소 주문 수량: 10 세트
가격: 1000 - 10000 USD
포장 세부 사항: 표준
배달 시간: 15 - 30 일
지불 조건: L/C (신용장), 전신환
공급 능력: 10000 세트
상세 정보
잎 물자: 스테인레스 강 사이즈: 36 / 50
가금 송풍전동기: 380V 50Hz 공기 양 (m3/h): 40000
접촉: 왓츠앱 008618830728667
강조하다:

Frp 가금 환기 시스템

,

페인트 부쓰 배기팬

,

8 인치 배기팬


제품 설명

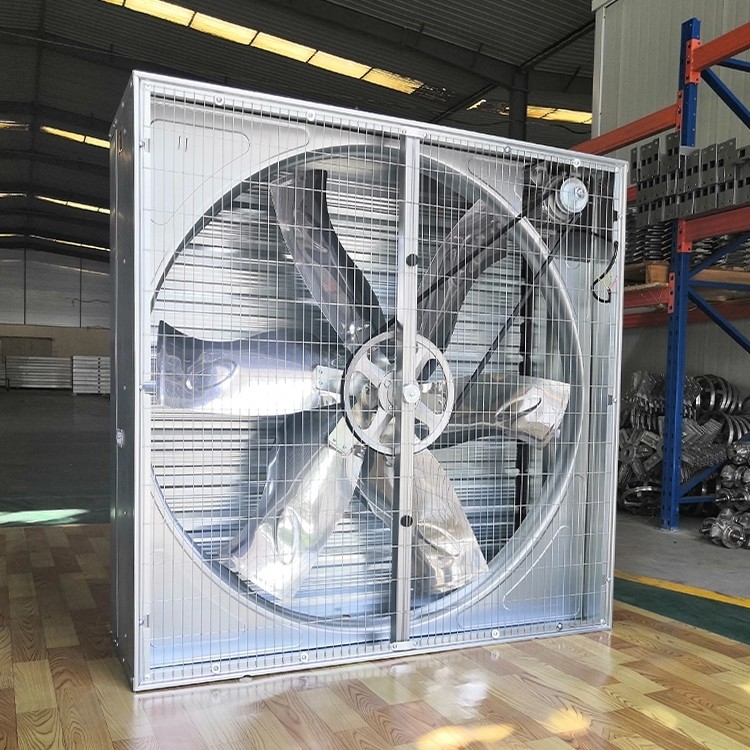

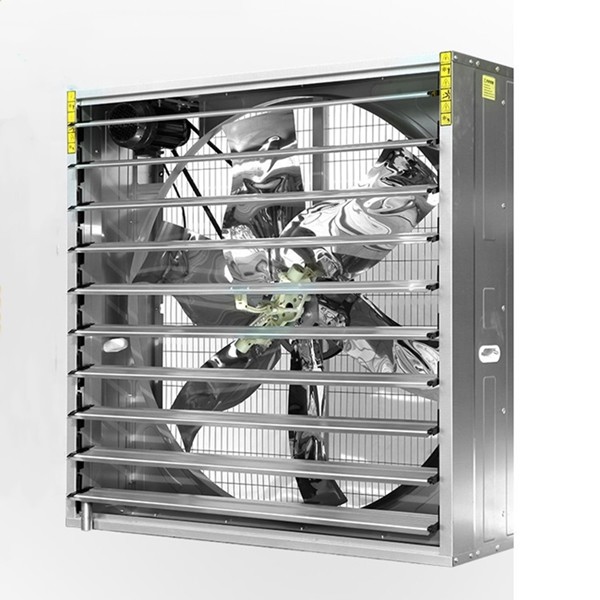

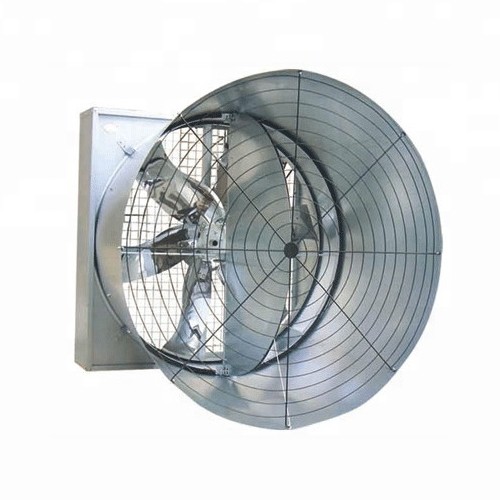

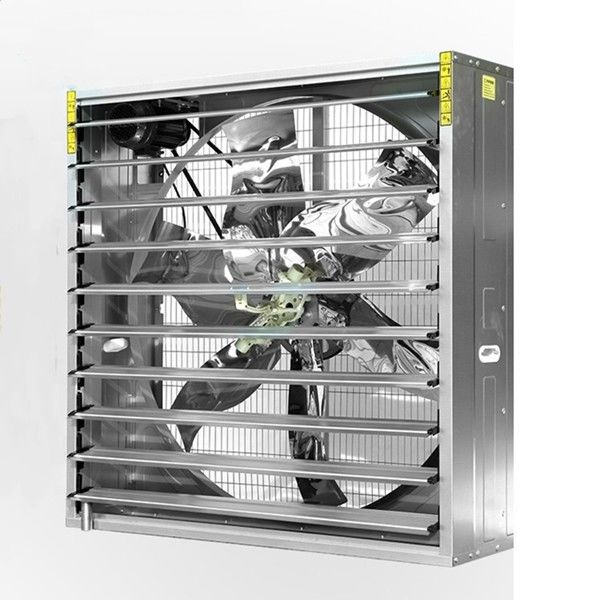

Hot Sell Heavy Duty Exhaust Fan For Industry/poultry/greenhouse



Introduction:
1,Stainless steel fan blade, light weight, high intensity, good toughness GuoYu fan blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. The thickness of the stainless steel is 1.2mm. Surface finish BA grade. 2,Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, lower vibration. Blast- sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability. 3,Belts are Japanese Mitsubishi brand, ensure the long service life, maintenance free. 4,Both China famous motor and Siemens motor are available. Motor voltage and frequence can be customized.
Main Accessories:
1,Centrifugal system: Centrifugal system open the shutter at completely 90 degree to ensure the lowest air resistance and biggest air volume. When close the sealing can efficiently block light and wind into the poultry farm house. Adopt high quality nylon PA66 to ensure the long service life.
2.V-belt: imported Japan Mitsuboshi or Sanlux belt, B type belt make sure use at least 5 years.
3,Motor: both China high quality motor and Siemens motor are available. Approved by CCC certificate. Protection level:IP55, insulation level: F class.
4,Fan blade: Fan blade is made of stainless steel by punching forming, no dust, attractive and durable. Special blade shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.
5,Fan bearing: Bearing adopts imported double-row bearing with special waterproof disign, water can’t enter. High strength, lower noise, maintenance free and long service life.



blade
430 stainless steel, 1.2mm thickness

Linking parts
Aluminium alloy
Frame
Galvanized sheet

Spring
304 stainless steel
Shutter
Galvanized sheet

Fastener parts
Stainless steel
Belt
Japanese Mitsubishi brand

Bearing
Imported double-row bearing, waterproof
Motor
Both China famous brand and Siemens Motor are available

Blade support
Hot-dip galvanized
Voltage
Can be changed to different voltage like 220v, Single phase

Delivery time
As usual 5~7 days
Motor protection class
IP55

Payment term
T/T, L/C
Fan belt pulley
High strength aluminum-magenisum alloy

Motor plate
Hexagon fixed nuts. Can suitable different size of motor.
Fan side
With plastic handle






배기팬 공장 젖소 Frp 양계장 환기 시스템 0배기팬 공장 젖소 Frp 양계장 환기 시스템 1배기팬 공장 젖소 Frp 양계장 환기 시스템 2
